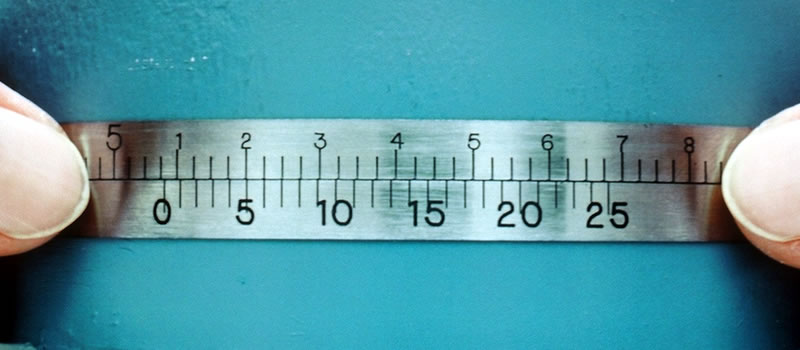

Circómetro Pi Tape para diámetro exterior en pulgadas
El circómetro Pi Tape puede ser fabricado a petición de toda longitud o anchura en función de sus requerimientos.
3 materiales disponibles:
Características:
Dimensiones:
Circómetro Pi Tape estándar ∅ exterior - pulgadas
 |
 |
 |
 |
 |
| Rangos ∅ exterior pulgadas |
Tolerancia ± pulgadas |
1095 Spring Steel Código |
716 Stainless Steel Código |
Blue Easy to Read Código |
|---|---|---|---|---|
| 0.500" - 2" | 0.001" | P000Espesor 0.007 pulgadas | P000SSEspesor 0.006 pulgadas | PM000EZEspesor 0.007 pulgadas |
| 0.75" - 7" | 0.001" | P01Espesor 0.007 pulgadas | P01SSEspesor 0.006 pulgadas | P01EZEspesor 0.007 pulgadas |
| 0.75" - 9" | 0.001" | P02Espesor 0.007 pulgadas | P02SSEspesor 0.006 pulgadas | P02EZEspesor 0.007 pulgadas |
| 2" - 12" | 0.001" | P1 | P1SS | P1EZ |
| 2" - 24" | 0.001" | P1SP | P1SPSS | P1SPEZ |
| 12" - 24" | 0.001" | P2 | P2SS | P2EZ |
| 12" - 36" | 0.001" | P2SP | P2SPSS | P2SPEZ |
| 24" - 36" | 0.001" | P3 | P3SS | P3EZ |
| 24" - 48" | 0.001" | P3SP | P3SPSS | P3SPEZ |
| 36" - 48" | 0.001" | P4 | P4SS | P4EZ |
| 48" - 60" | 0.001" | P5 | P5SS | P5EZ |
| 60" - 72" | 0.001" | P6 | P6SS | P6EZ |
| 72" - 84" | 0.001" | P7 | P7SS | P7EZ |
| 84" - 96" | 0.001" | P8 | P8SS | P8EZ |
| 96" - 108" | 0.001" | P9 | P9SS | P9EZ |
| 108" - 120" | 0.001" | P10 | P10SS | P10EZ |
| 120" - 132" | 0.001" | P11 | P11SS | P11EZ |
| 132" - 144" | 0.001" | P12 | P12SS | P12EZ |
Circómetro Pi Tape sobre pedido ∅ exterior - pulgadas
|
|
|
|
|
| Rangos ∅ exterior pulgadas |
Tolerancia ± pulgadas |
1095 Spring Steel Código |
716 Stainless Steel Código |
Blue Easy to Read Código |
|---|---|---|---|---|
| 144" - 156" | 0.003" | SP-P13 | SP-P13SS | SP-P13EZ |
| 156" - 168" | 0.003" | SP-P14 | SP-P14SS | SP-P14EZ |
| 168" - 180" | 0.003" | SP-P15 | SP-P15SS | SP-P15EZ |
| 180" - 192" | 0.003" | SP-P16 | SP-P16SS | SP-P16EZ |
| 192" - 204" | 0.003" | SP-P17 | SP-P17SS | SP-P17EZ |
| 204" - 216" | 0.003" | SP-P18 | SP-P18SS | SP-P18EZ |
| 216" - 228" | 0.005" | SP-P19 | SP-P19SS | SP-P19EZ |
| 228" - 240" | 0.005" | SP-P20 | SP-P20SS | SP-P20EZ |
| 240" - 252" | 0.005" | SP-P21 | SP-P21SS | SP-P21EZ |
| 252" - 264" | 0.005" | SP-P22 | SP-P22SS | SP-P22EZ |
| 264" - 276" | 0.005" | SP-P23 | SP-P23SS | SP-P23EZ |
| 276" - 288" | 0.005" | SP-P24 | SP-P24SS | SP-P24EZ |
| 288" - 300" | 0.006" | SP-P25 | SP-P25SS | SP-P25EZ |
| 300" - 312" | 0.006" | SP-P26 | SP-P26SS | SP-P26EZ |
| 312" - 324" | 0.006" | SP-P27 | SP-P27SS | SP-P27EZ |
| 324" - 336" | 0.006" | SP-P28 | SP-P28SS | SP-P28EZ |
| 336" - 348" | 0.006" | SP-P29 | SP-P29SS | SP-P29EZ |
| 348" - 360" | 0.006" | SP-P30 | SP-P30SS | SP-P30EZ |
| 360" - 372" | 0.008" | SP-P31 | SP-P31SS | SP-P31EZ |
| 372" - 384" | 0.008" | SP-P32 | SP-P32SS | SP-P32EZ |
| 384" - 396" | 0.008" | SP-P33 | SP-P33SS | SP-P33EZ |
| 396" - 408" | 0.008" | SP-P34 | SP-P34SS | SP-P34EZ |
| 408" - 420" | 0.008" | SP-P35 | SP-P35SS | SP-P35EZ |
| 420" - 432" | 0.008" | SP-P36 | SP-P36SS | SP-P36EZ |
| 432" - 444" | 0.009" | SP-P37 | SP-P37SS | SP-P37EZ |
| 444" - 456" | 0.009" | SP-P38 | SP-P38SS | SP-P38EZ |
| 456" - 468" | 0.009" | SP-P39 | SP-P39SS | SP-P39EZ |
| 468" - 480" | 0.009" | SP-P40 | SP-P40SS | PSP-40EZ |
| 480" - 492" | 0.009" | SP-P41 | SP-P41SS | SP-P41EZ |
| 492" - 504" | 0.009" | SP-P42 | SP-P42SS | SP-P42EZ |
| 504" - 516" | 0.011" | SP-P43 | SP-P43SS | SP-P43EZ |
| 516" - 528" | 0.011" | SP-P44 | SP-P44SS | SP-P44EZ |
| 528" - 540" | 0.011" | SP-P45 | SP-P45SS | SP-P45EZ |
Circómetro Pi Tape ∅ exterior - pulgadas
Instrucciones
Vídeo didáctico
Opcional:
Dinamómetro, escala de tensión de 0 a 10 lbs, entregado con su certificado de calibración emitido por Pi Tape, tolerancia ± 0.25 lbs.
Aplicar una tensión de 5 lbs.
