Pi Tape periphery tape for outer circumference measurements in millimeters

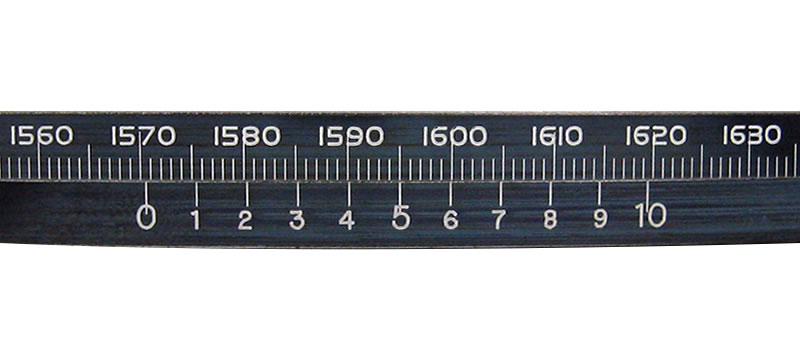

Available in the Blue Easy to Read material (as shown), larger sizes and special widths can be manufactured on request to suit your requirements.
Calibration report traceable to the National Institute of Standards and Technology (N.I.S.T.) is furnished with each new tape at no additional charge.
All calibrations compliant with ANSI/NCSL Z540-1-1994, ISO/IEC 17025, ISO 10012-1, MIL-STD 45662A, 10CFR21.
1 available material:
➯ Blue Easy to Read: specially designed for use in low light environments or highly reflective conditions, except for corrosive environments.
Features:
➯ Tolerance: ± 0,2 mm up to ∅ 3000 mm
➯ Vernier graduation: 0,1 mm
➯ Tension: 2,25 Kg (optional with tension scale)
➯ Measuring ranges: from 100 to 12000 mm
➯ Gage graduation: 1 mm
➯ Calibration report: included at no addional cost
Dimensions:
➯ Vernier width: 6,35 mm
➯ Body width: 12,7 mm
➯ Gage width: 6,35 mm
➯ Standard thickness: 0,25 mm
Pi Tape periphery tape standard sizes outer circumference - mm
![]() |
![]() |
![]() |
![]() |
![]() |
Outer circumference range mm |
Tolerance ± mm |
1095 Spring Steel Part # |
716 Stainless Steel Part # |
Blue Easy to Read Part # |
---|---|---|---|---|
100 - 1000 | 0,2 | - | - | CR1MM |
1000 - 2000 | 0,2 | - | - | CR2MM |
2000 - 3000 | 0,2 | - | - | CR3MM |
3000 - 4000 | 0,4 | - | - | CR4MM |
Pi Tape periphery tape on request outer circumference - mm
![]() |
![]() |
![]() |
![]() |
![]() |
Outer circumference range mm |
Tolerance ± mm |
1095 Spring Steel Part # |
716 Stainless Steel Part # |
Blue Easy to Read Part # |
---|---|---|---|---|
4000 - 5000 | 0,4 | - | - | SP-CR5MM |
5000 - 6000 | 0,4 | - | - | SP-CR6MM |
6000 - 7000 | 0,6 | - | - | SP-CR7MM |
7000 - 8000 | 0,6 | - | - | SP-CR8MM |
8000 - 9000 | 0,6 | - | - | SP-CR9MM |
9000 - 10000 | 0,8 | - | - | SP-CR10MM |
10000 - 11000 | 0,8 | - | - | SP-CR11MM |
11000 - 12000 | 0,8 | - | - | SP-CR12MM |
Pi Tape periphery tape for outer circumference - mm
Instructions
Optional
Tension scale from 0 to 5 Kg, furnished with a calibration certificate issued by Pi Tape, tension scale tolerance is ± 0,1 Kg.
Apply for a 2,25 Kg tension.
